Using Curvature in GeoTeric

Using Curvature in GeoTeric

Geoteric on 15 Jan 2018
Find me on:

The Flexure attribute in GeoTeric is a mean curvature attribute, it measures the amount of deformation on a surface.  The Flexure attribute is a second order measurement and therefore is not affected by the local orientation of the surface.  Where the reflectors are steeply dipping or flat, the Flexure value is very low, the Flexure value will be greatest where the reflectors are deformed, for example at a fault break.

A detailed definition of Flexure attribute can be found in this previous blog post.

The Flexure attribute can be used in a variety of geologic settings where other common fault attributes may not define a fault due to steeply dipping faults and reflectors.  The table below shows examples of fault types where common fault attributes are good at defining faults and where the Curvature (Flexure) attribute is better than Dip, Azimuth or edge attributes.

fault types.png

(From Roberts 2001)

In the table above illustrates how curvature attributes (such as Flexure) are effective at highlighting faults where the fault is very steep and the reflectors are dipping.  The second order nature of the attribute is not affected by the steep dips of the reflectors, it is detecting deformation along the reflectors.  When the reflectors and fault are dipping, or the fault is so steep, the faults are at times only expressed a ‘bend’ in the seismic.  The Flexure attribute is able to detect these ‘bends’, where other attributes may not be able to pick them up.  The upthrown side of the fault, which is antiformal in shape, is measured as negative Flexure and the downthrown side of the fault, is positive Flexure.

Figure 1 is an example of a fault that is more of a bend in the seismic than an actual break.  The Flexure attribute defines the fault clearly in picture D of Figure 1, whereas the SO Semblance does not pick up the fault, picture C.  The Flexure attribute has detected the deformation in the reflector.  The upthrown side of the fault is denoted by the strong negative Flexure value and the downthrown side of the fault is defined as positive Flexure.A- Seismic, B- Seismic with fault.jpg

Figure 1: A- Seismic, B- Seismic with fault, C- SO Semblance, D- Flexure

As with other structural attributes, Flexure can be combined with other attributes through Opacity Blending or Colour Blending for a more comprehensive understanding of the geology.  Figure 2 is a series of seismic data and attributes to illustrate how Flexure can be used and the difference from other attributes.  The SO Semblance more clearly defines the regional faults for easy fault interpretation.  The Flexure also highlights the regional faults, but they are not as clear as the SO Semblance.  The Flexure picks up a West to East trending fault, not seen on the edge attributes, although it is picked up in the Dip (visible in the CMY blend (F)).  Each of the volumes can be used in different settings to interpret the faults.  The SO Semblance illustrates the regional fault pattern, while the Flexure picks up more the subtle faults in the southwest corner of the slice. Faults can be detected from the Flexure, as you would from a SO Semblance or CMY Blend, these are shown in picture D.  Combining the attributes using either an HSV or CMY blend gives a more complete picture.  Both the blends highlight the regional faults, but the HSV blend more clearly defines the secondary West to East fault trend from the Flexure and Dip attributes.Seismic 1.pngSeismic, B- SO Semblance.png

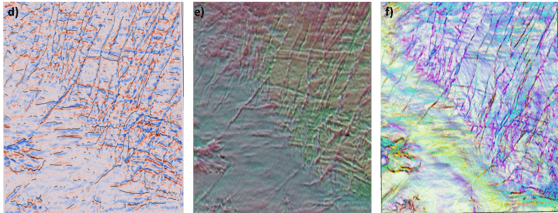

Figure 2: A - Seismic, B- SO Semblance, C- Flexure, D- FaultIn from Flexure, E - HSV Blend using Azimuth, Dip and Flexure, F- CMY Blend using Dip, SOSemblance (edge attribute) and Tensor (edge attribute).

Besides detecting faults, the Flexure attribute can also be used to highlight depositional features.  In Figure 3, the channel flanks are defined by a negative Flexure and the channel cores are expressed as positive Flexure.Seismic Section.jpg

Figure 3: Inline of a seismic section, the Flexure on the horizon, expresses the channel flanks with negative Flexure (antiform) and the channel cores with positive Flexure (synform).


Curvature Attributes and their Applications to 3D Interpreted Horizons, Andy Roberts 2001
